Belt Conveyor Idler Roller

    Belt conveyor idler roller are the general name of idlers, including various trough idlers, impact idlers, parallel idlers and so on. Diameter range from 89mm to 219mm, according to different belt conveyor models for selection and installation.At present, including iron roller, ceramic roller, rubber roller and so on.It is one of the most convenient parts for belt conveyor.

Belt Conveyor Idler Roller Product Application

Our products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.

About Belt conveyor idler roller we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.More details,please contact us.



Belt Conveyor Idler Roller Main Features

1) Solid design, suitable for heavy lifting.

2) The bearing housing and steel tube are assembled and welded with a concentric automatic.

3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..

4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.

5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.

6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.

7) The casing  is manufactured with highly composite, anti corrosive alloy.

8) The roller is lubricated and free from maintenance.

9) Woring life expectancy is up to 30,000 hours or more, depending on usage.

10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments



Belt Conveyor Idler Roller Specification


                                                                Specification

Diameter

60-219mm

Length

100-3500mm

Tube

Q235(GB),Rubber,Nylon,HDPE

Shaft

45# steel(GB) equal to C45

Bearing

Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance

Grease

Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal

Lubrication

Grease is Lithium soap type grease with Rust Inhibitors

Welding

Mixed gas shielded arc welding end

Painting

Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting


Model of Belt Conveyor Idler Roller



Standard Diameter(mm)
Standard Diameter(Inch)
Lengthscope
(mm)
Bearings Type
(Min-Max)
dler's shell wall thinkness
63.5
21/2
150-3500
204
3.0mm-3.75mm
76
3
150-3500
204 205
3.0mm-4.0mm
89
31/3
150-3500
204 205
3.0mm-4.0mm
102
4
150-3500
204 205 305
3.5mm-4.0mm
108
41/4
150-3500
204 205 305 306
3.5mm-4.0mm
114
41/2
150-3500
204 205 305 306
3.5mm-4.5mm
127
5
150-3500
204 205 305 306
3.5mm-4.5mm
133
51/4
150-3500
204 206 207 305 306
3.5mm-4.5mm
152
6
150-3500
204 206 207 305 306 307 308
4.0mm-4.5mm
159
61/4
150-3500
204 206 207 305 306 307 308
4.0mm-4.5mm
165
61/2
150-3500
207 305 306 307 308
4.5mm-6.0mm
194
75/8
150-3500
207 307 308 309 310
4.5mm-6.0mm
219
85/8
150-3500
308 309 310
4.5mm-6.0mm

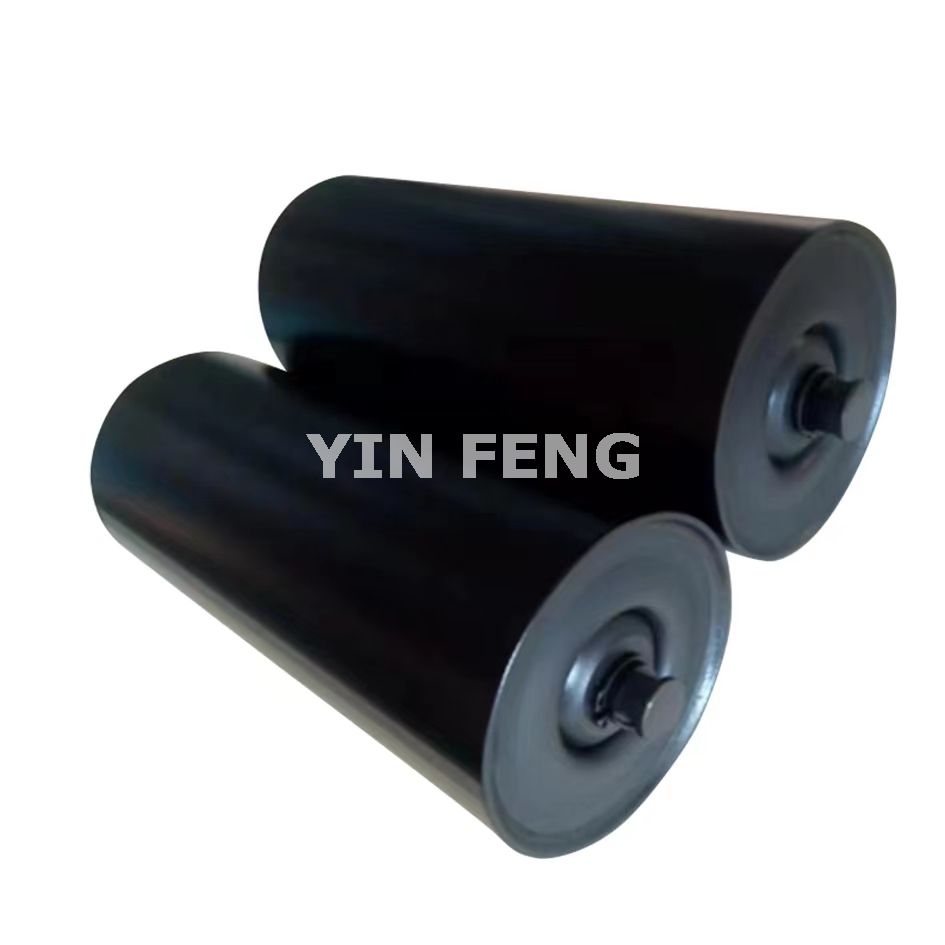

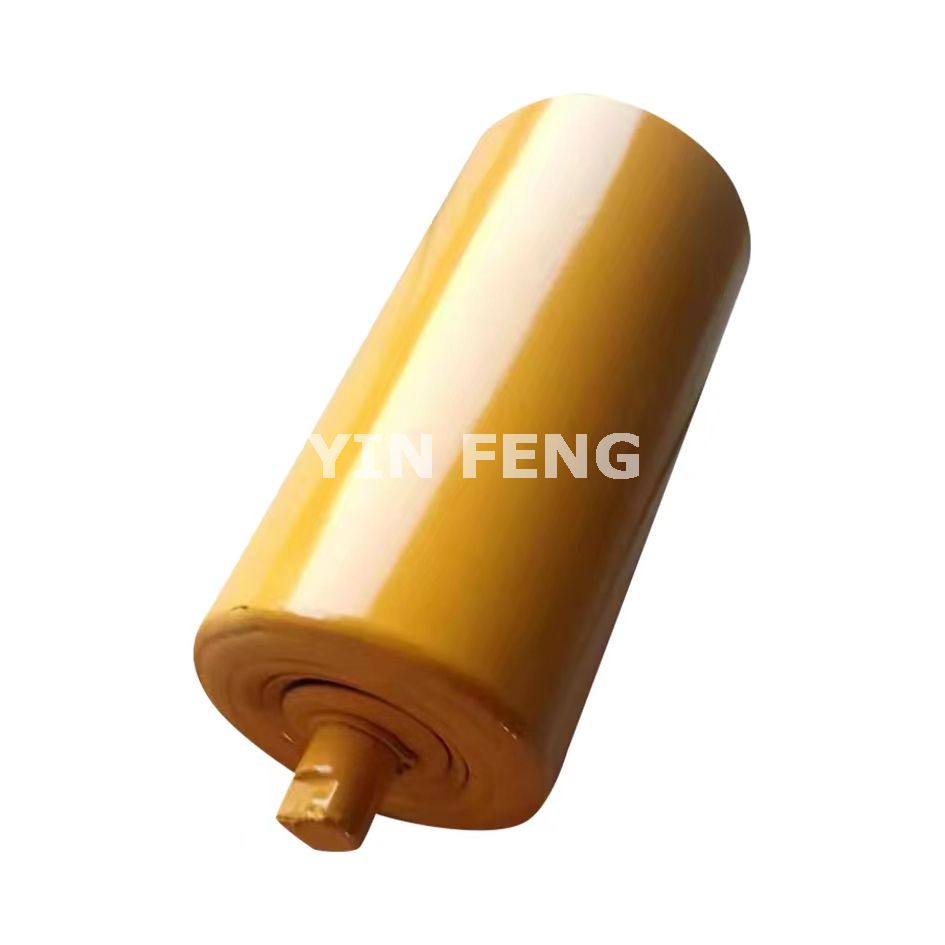

Belt Conveyor Idler Roller Detailed Images



Idler Roller



Belt Conveyor Idler Roller


Belt Conveyor Idler Roller Packaging


Belt Conveyor Idler Roller
