Bevel Gear

    Bevel gear is for transmission between intersecting shafts. Compared with the cylindrical gear, it can change the transmission direction.

Bevel Gear Product profile

We are engaged in offering a wide assortment of  Bevel Gear. Our products to many international brands with adherence to international standards of quality. These  Bevel Gear can be availed at industrial leading price. Further, the raw material used in our products is obtained from the authorized vendors of the industry. The offered products are well-known among clients for their optimum quality and long service life.

 Bevel gear has several advantages as compared with conventional gear forming by a cutting process. For example, it reduces the material loss, and the production lead-time and also has the advantage in product quality improvement of using plastic material flow in the gear teeth. In general, bevel gear has a process sequence including preforming and final forming because of the geometrical complexity of its tooth profile. Despite the importance of designing the process sequence, conventionally it has been done by the design expert with exhaustive trial-and-error. Recently, there have been many trial approaches to find the optimal process and die design, and to acquire the quality-related information after forming from simulation using the FEM. In this study the bevel gear  process is simulated by three-dimensional FEM based on rigid–plastic material modeling, and it is applied to the die design consideration to improve the product quality and to secure the effective material flow. Finite element simulations are performed for two types of bevel gear  processes to find a defect-free forging process, and comparisons are made between the two processes. It has been thus shown how an improvement can be made through an improved design using finite element simulation.


C45, 20CrMnTi, 40Cr, 42CrMo, stainless steel, copper, nylon etc


Machined, Casting, Hobbing

Heat treatment

High frequency quenching heat treatment, hardened teeths

Surface treatment

Blacken ,Zinc plated or customer requirement


High precision, high wear resistance, low noise, smooth and steady, high strength

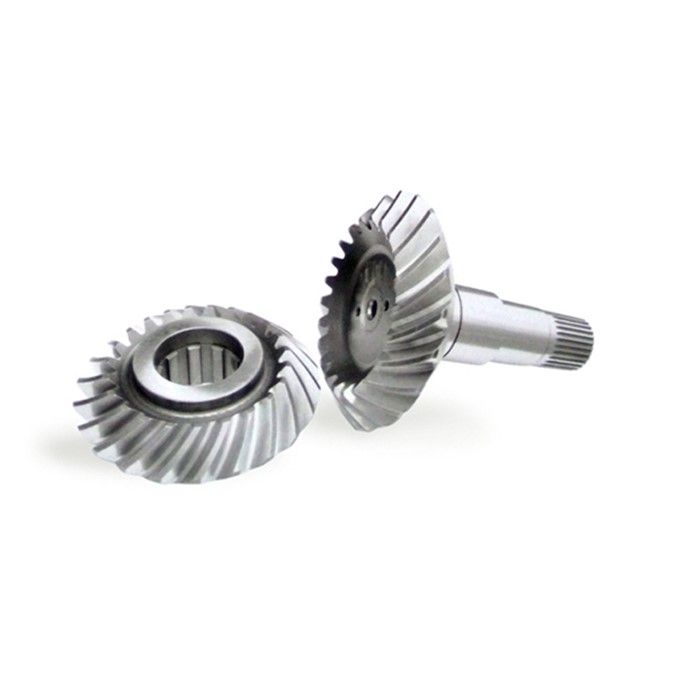

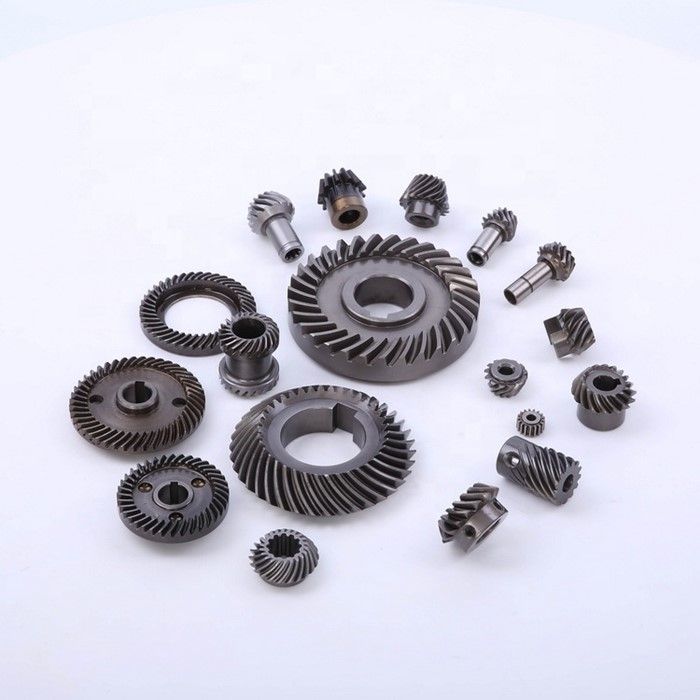

Bevel Gear Photos

Bevel Gear

Bevel Gear Packaging

Bevel Gear
