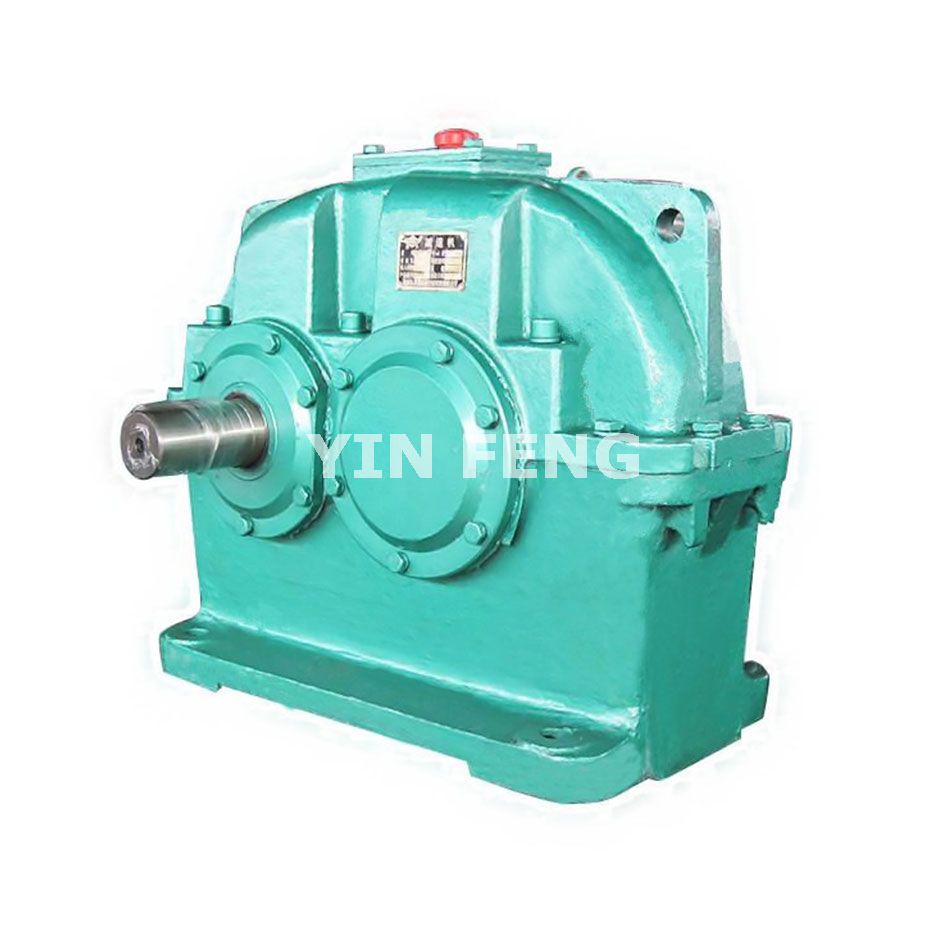

ZDY Hardened Cylindrical Gear Reducer/Gearbox

Characteristics:

1.Small size, light weight, high accuracy, large carrying capacity, high efficiency, long service life, high reliability, transmission smoothly, low noise.

2.All the gear are made of high quality alloy steel, processe by carburizing and quenching, and the hardness of tooth surface is reach up to hrc54 - 62.

3.Optimized design for the center distance and nominal transmission ratio. Have good interchangeability for the main parts and components.

4.Use oil samp to lubricate, natural cooling.

Application:

1.The input speed is generally ≤ 1500 r/min.

2. It can be widely used in metallurgical, mining, chemical, construction, lifting, transportation, textiles, paper making, instruments, plastics, rubber, energy and other industrial field.

3. The circumferential speed of gear drive is no more than 20 m / s.

4.The working temperature is  - 40~50 ℃, if less than 0℃. Lubricating oil should be preheated more than 0 ℃ before start running. This gear reducer can run reversible.

Types

ZDY single-stage cylindrical gear speed reducer, ZLY double-stage cylindrical gear speed reducer,

ZSY three-stage cylindrical gear speed reducer.
