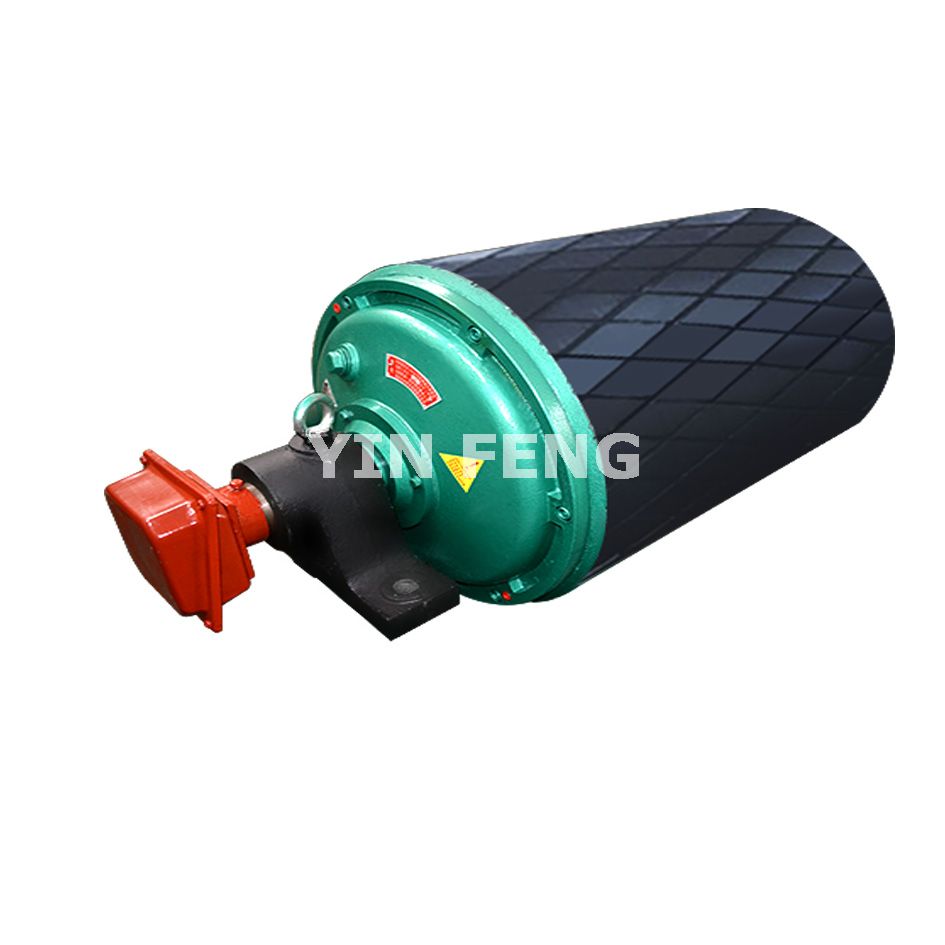

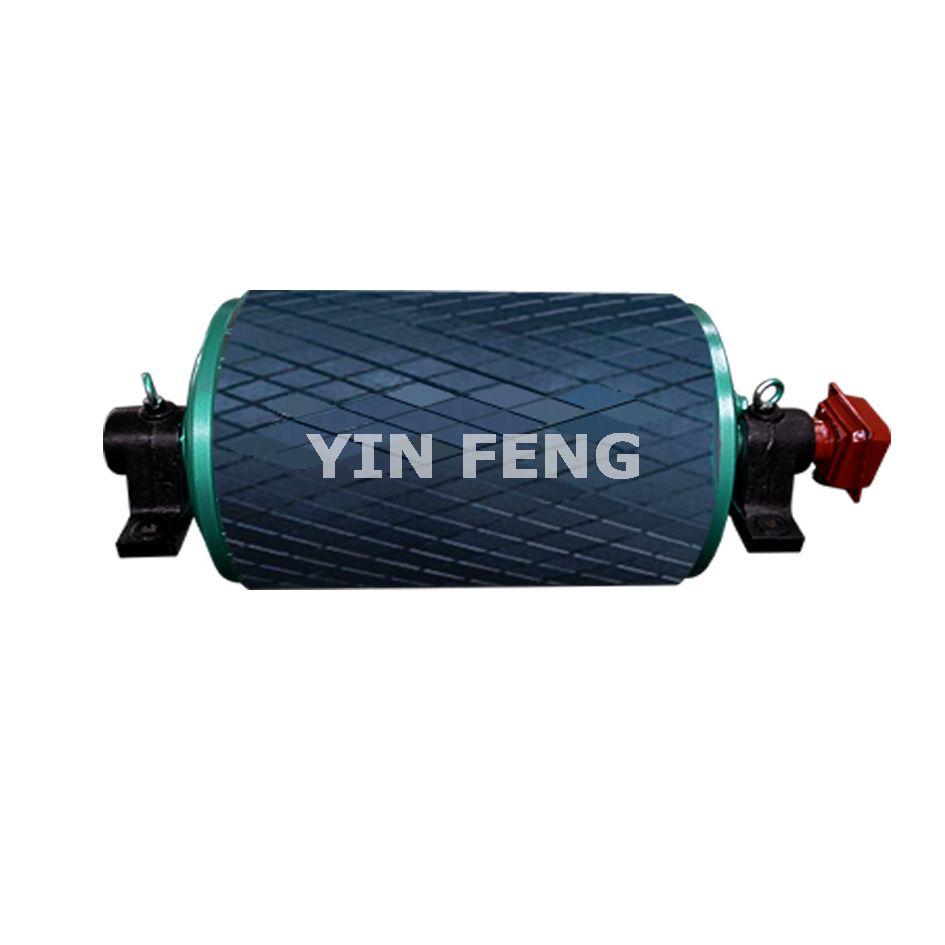

TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor)is the internal driving device for the supportive use of various fixed belt conveyor.

Inquire Now Next

Product details

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) Product Introduction

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor; compared with external driving device, it carries the characteristics of compact structure, small spatial area, convenient use an maintenance, safe and reliable operation and better leakproofness. It is suitable for the humid and muddy workplace with high dust concentration to meet the requirements such as reverse stop and encapsulation.

As the substitution of extensively applied dynamo—reducer shaped external driving device, it can be used to constitute belt conveyor that not only transports materials in bulk such as coal, mineral, sand, cement and flour, but also conveys articles such as gunny bag and equipment with less energy consumption and easier centralized control.

Description	Oil-cooled Motorized Pulleys (Motorized Drum)
Type	motorized with motor
Power	1.5 2.2 3.0 4.5 5.5 7.5 11 15 18.5 22 KW
Velocity of pulley surface	0.8 1.0 1.25 1.6 2.0 2.5 m/s
Pipe / tube/shell	1) Material : Q235 carbon steel 2) Diameter : 500 mm 3) Length: 620mm ~ 1400 mm or as require 4) Thickness: 6mm, 10mm or as require
Shaft / axis	1) Material: steel 45 2) Diameter: 45-130mm
Bearing	big roving crack, deep groove ball with double sealing
Welding	pipe and bearing housing with automatic welding
Surface	smooth steel surface, rubber face
Color	red, green, blue or as require
Standard	ISO9001:2008 CEMA DIN TUV
Application	Used in coal mine, steel industry, cement industry and so on
Service life	More than 30,000 hours

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor)

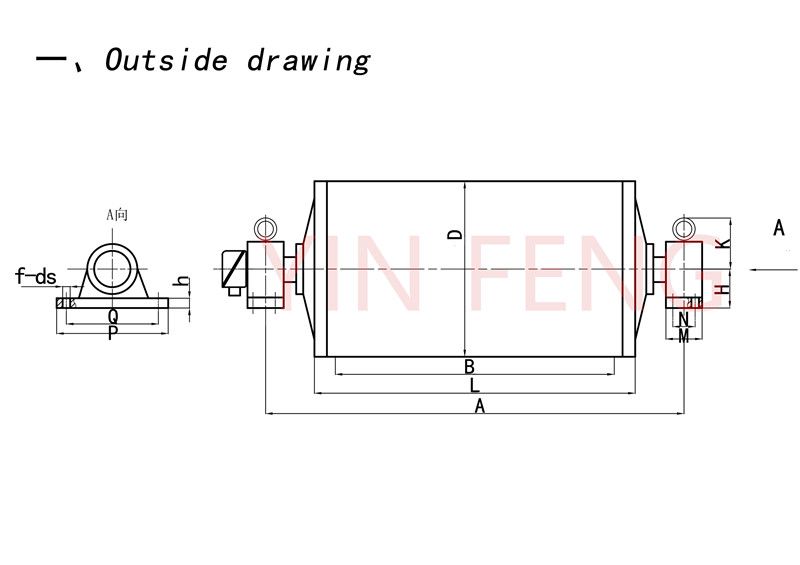

Outside Drawing
TDY75 Type Oil-cooled Motorized Pulleys (Motorized Drum)

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor)

External Dimension

D	B	A	L	H	K	M	N	P	a	h	ds
320	500	850	600	120	105	90		340	280	35	27
	650	1000	750	120	105	90		340	280	35
	800	1300	950	120	105	90		340	280	35
	1000	1500	1150	120	105	90		340	280	35
400	500	850	600	120	125	90		340	280	35
	650	1000	750	120	125	90		340	280	35
	800	1300	950	120	125	90		340	280	35
	1000	1500	1150	120	125	90		340	280	35
500	500	850	600	120	145	90		340	280	35
	650	1000	750	120	145	90		340	280	35
	800	1300	950	120	145	90		340	280	35
	1000	1500	1150	120	145	90		340	280	35
	1200	1750	1400	120	145	90		340	280	35
630	650	1000	750	120	175	90		340	280	35
	800	1300	950	120	175	130	80	400	330	35
	1000	1500	1150	120	175	130	80	400	330	35
	1200	1750	1400	120	175	160	90	440	360	50	34
	1400	2000	1600	120	175	160	90	440	360	50	34
800	800	1300	950	120	175	130	80	400	330	35	27
	1000	1500	1150	120	175	130	80	400	330	35	27
	1200	1750	1400	120	175	160	90	440	360	50	34
	1400	2000	1600	120	175	160	90	440	360	50	34
1000	1000	1500	1150	120	175	130	80	400	330	35	27
	1200	1750	1400	120	175	160	90	440	360	50	34
	1400	2000	1600	120	175	160	90	440	360	50	34

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor)

Parameter Table

Diameter （mm）	Power （KW）	Blet Width （mm）	Velocity of drum surface(m/s)
Diameter （mm）	Power （KW）	Blet Width （mm）	0.8		1.0	1.25	1.6	2.0	2.5
320	1.5	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	2.2	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	3	500			•	•	•	•	•
		650			•	•	•	•	•
		800			•	•	•	•	•
		1000			•	•	•	•	•
	4	500			•	•	•	•	•
		650			•	•	•	•	•
		800			•	•	•	•	•
		1000			•	•	•	•	•
	5.5	500			•	•	•	•	•
		650			•	•	•	•	•
		800			•	•	•	•	•
		1000			•	•	•	•	•
400	1.1	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	1.5	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	2.2	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	3	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	4	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
	5.5	500	•		•	•	•	•	•
		650	•		•	•	•	•	•
		800	•		•	•	•	•	•
		1000	•		•	•	•	•	•
Diameter （mm）	Power （KW）	Blet Width （mm）	Velocity of drum surface(m/s)
Diameter （mm）	Power （KW）	Blet Width （mm）	0.8	1.0		1.25	1.6	2.0	2.5
500	1.5	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	2.2	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	3	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	4	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	5.5	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	7.5	500	•	•		•	•	•	•
		650	•	•		•	•	•	•
		800	•	•		•	•	•	•
		1000	•	•		•	•	•	•
		1200	•	•		•	•	•	•
	11	500		•		•	•	•	•
		650		•		•	•	•	•
		800		•		•	•	•	•
		1000		•		•	•	•	•
		1200		•		•	•	•	•
	15	500				•	•	•	•
		650				•	•	•	•
		800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
	5.5	800		•		•	•	•	•
		1000		•		•	•	•	•
		1200		•		•	•	•	•
		1400		•		•	•	•	•
Diameter （mm）	Power (KW)	Blet Width （mm）	Velocity of drum surface(m/s)
Diameter （mm）	Power (KW)	Blet Width （mm）	0.8	1.0		1.25	1.6	2.0	2.5
630	7.5	800		•		•	•	•	•
		1000		•		•	•	•	•
		1200		•		•	•	•	•
		1400		•		•	•	•	•
	11	800		•		•	•	•	•
		1000		•		•	•	•	•
		1200		•		•	•	•	•
		1400		•		•	•	•	•
	15	800		•		•	•	•	•
		1000		•		•	•	•	•
		1200		•		•	•	•	•
		1400		•		•	•	•	•
	18.5	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
	22	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
800	7.5	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
	11	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
	15	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
	18.5	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•
	22	800				•	•	•	•
		1000				•	•	•	•
		1200				•	•	•	•
		1400				•	•	•	•

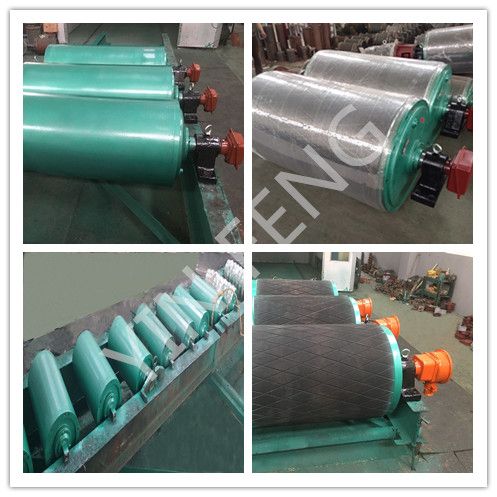

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) Photos

TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)

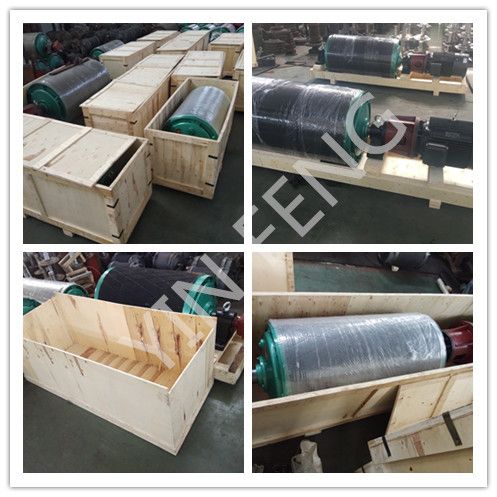

TDY75 type oil-cooled motorized pulley (motorized drum/drum motor) Packaging

TDY75 Type Oil-cooled Motorized Pulley (Motorized Drum/Drum Motor)
