DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor.
DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor)
Product Introduction
DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor) is the internal driving device for the supportive use of various fixed belt conveyor; compared with external driving device, it carries the characteristics of compact structure, small spatial area, convenient use an maintenance, safe and reliable operation and better leakproofness. It is suitable for the humid and muddy workplace with high dust concentration to meet the requirements such as reverse stop and encapsulation.
DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor)

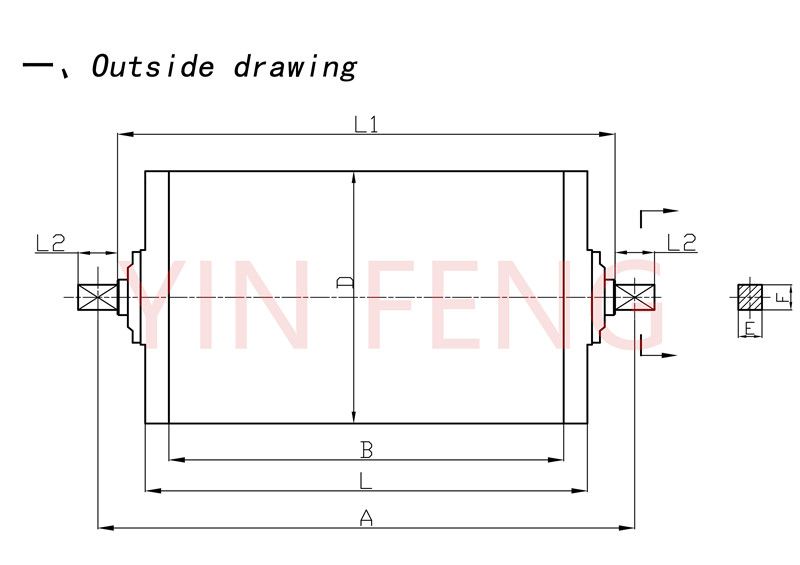

Outside Drawing
DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor)
DY1 External Dimension
D | B | A | L | L1 | L2 | F | E |
216 | 400 | 580 | 460 | 530 |
50 |
32 |
30d9 |
500 | 680 | 560 | 630 | ||||
650 | 850 | 730 | 800 | ||||
250 | 400 | 580 | 460 | 530 | |||
500 | 680 | 560 | 630 | ||||
650 | 850 | 730 | 800 | ||||
320 | 500 | 680 | 560 | 630 | |||
650 | 850 | 730 | 800 | ||||
800 | 1000 | 880 | 950 | ||||
400 | 500 | 680 | 560 | 630 | |||
650 | 850 | 730 | 800 | ||||
800 | 1000 | 880 | 950 |
JYD External Dimension
D | B | A | L | L1 | L2 | F | E |
216 | 400 | 540 | 450 | 490 |
50 |
32 |
30d9 |
500 | 630 | 550 | 580 | ||||
650 | 800 | 710 | 750 | ||||
250 | 400 | 540 | 450 | 490 | |||
500 | 630 | 550 | 580 | ||||
650 | 800 | 710 | 750 | ||||
320 | 500 | 630 | 550 | 580 | |||
650 | 800 | 710 | 750 | ||||
800 | 940 | 850 | 890 | ||||
400 | 500 | 630 | 550 | 580 | |||
650 | 800 | 710 | 750 | ||||
800 | 950 | 850 | 890 | 39 | 38d9 |
Application of DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor)
1, can be used instead of the widespread use of a motor reducer type of external drive means for constituting the belt conveyor can transport coal, ore, sand, cement, flour and other bulk materials, can also transport sack, and equipment into the items .
2, simple and compact structure, small footprint area.
3, sealed for dust concentration, wet and muddy in the workplace.
4, easy maintenance, safe and reliable operation and long life.
5, energy consumption, and easy to implement centralized control.
6, can meet a variety of backstop, brake, plastic packets and other needs.

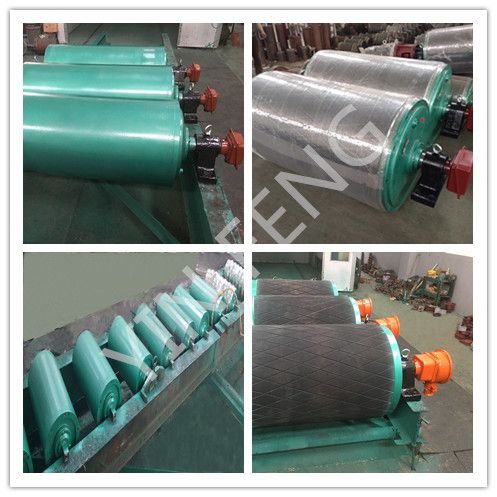

DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor) Photos

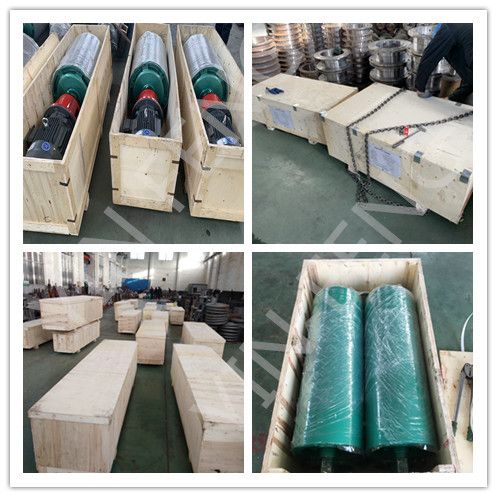

DY1 （JYD）type oil-cooled motorized pulley (motorized drum/drum motor) Packaging
