Tail Pulley(Bend Pulley)

Tail pulley(Bend Pulley) is a key component of belt conveyor，is widely used in metallurgy、mining、lifting、transportation、Cement、construction、chemical、building、materials、light industry、petroleum、printing、dyeing and textile etc.

Inquire Now Next

Product details

Tail pulley (Bend Pulley) is a key component of belt conveyor. It is mainly used to change the running direction of conveyor belt or press conveyor belt to increase the angle between conveyor drum and conveyor drum. Tail pulley is suitable for conveyor machinery. It is mainly used in metallurgy, mine, port, chemical medicine, cement building materials, steel, coal mine and other fields. It is the driving device of various belt conveyors. It has the characteristics of compact structure, light weight, less occupancy, reliable performance, beautiful appearance, safe and convenient use, and can still work normally under the harsh conditions such as dust, wet and muddy.There are two models:TD75 and DTII.

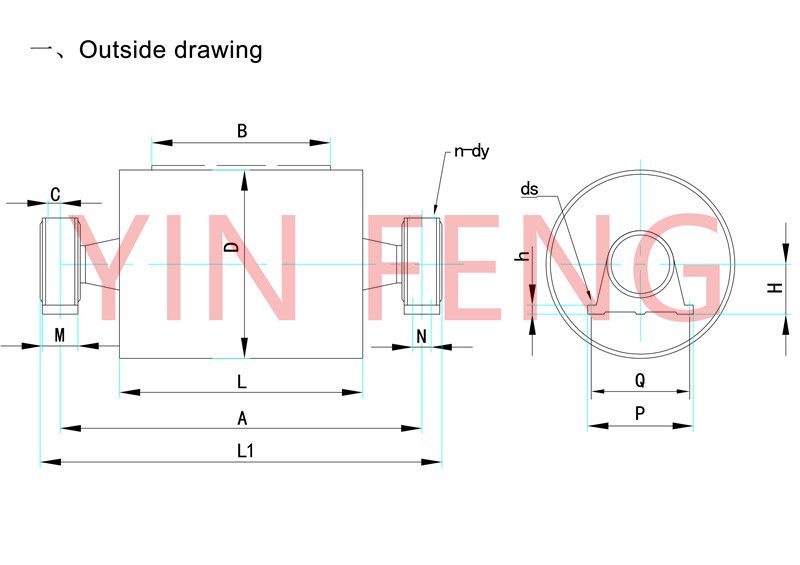

TD75 Tail pulley(Bend Pulley) Outside Drawing

Tail Pulley(Bend Pulley)

Tail pulley(Bend Pulley) External Dimension

B	D	A	L	L1	Q	P	H	h	M	N	ds	Bearing Type	Drawing No.
500	320	800	600	902	260	320	90	33	70	－	22	1310	TD1B1
	400												TD1B2
650	320	960	750	1062	260	320	90	33	70	－	22	1310	TD2B1
	400				280	340	100				27	1312	TD2B2
	500												TD2B3
800	320	1180	950	1282	280	340	100	33	70	－	27	1312	TD3B1
	400			1292	350	410	120		90			1316	TD3B2
	500												TD3B3
	630												TD3B4
1000	400	1410	1150	1512	280	340	100	33	70	－	27	1312	TD4B2
	500			1522	350	410	120		90			1316	TD4B3
	630												TD4B4
	800												TD4B5
1200	400	1660	1400	1762	280	340	100	33	70	－	27	1312	TD5B2
	500			1790	380	460	140		130	80		3520	TD5B3
	630												TD5B4
	800												TD5B5
	1000												TD5B6
1400	400	1860	1600	1962	280	340	100	33	70	－	27	1312	TD6B2
	500			1990	380	460	140		130	80		3520	TD6B3
	630												TD6B4
	800												TD6B5
	1000												TD6B6
	1250												TD6B7

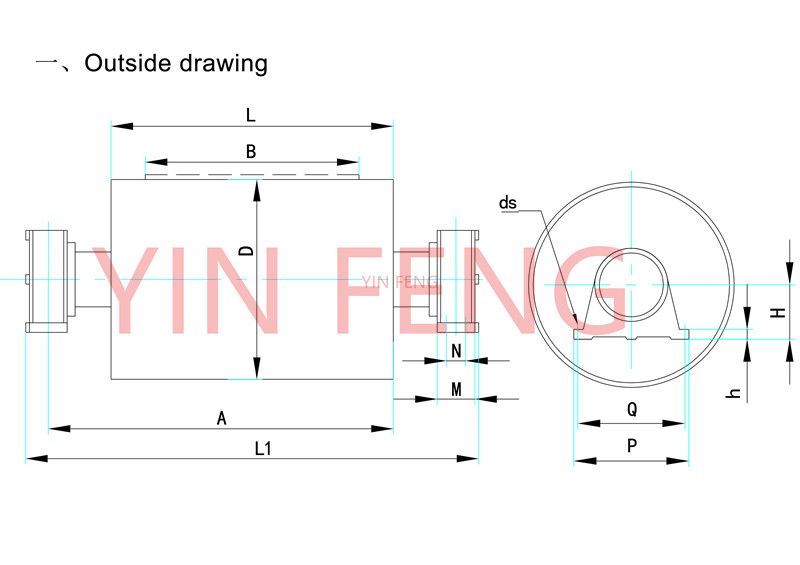

DTII Tail pulley(Bend Pulley) Outside Drawing

Tail Pulley(Bend Pulley)

DTII Tail pulley(Bend Pulley) External Dimension

B	Allowable resultant force(KN)	D	Bearing Type	A	L	L1	Q	P	H	h	M	N	ds	C	n-dy	Metal Face	Covering Rubber
																Drawing No.	Drawing No.
500	9	250	1310	850	600	945	260	320	90	33	70	－	M16	14	2-M8 X1	DTII01B1051
	10	315														DTII01B2051
		400														DTII01B3051	DTII01B3052
	23		1312			953	280	340	100					18		DTII01B3061	DTII01B3062
	28	500														DTII01B4061	DTII01B4062
	49		1316			959	350	410	120				M20	22		DTII01B4081	DTII01B4082
650	8	250	1310	1000	750	1095	260	320	90				M16	14		DTII02B1051
		315														DTII02B2051
	16		1312			1103	280	340	100					18		DTII02B2061
	20	400														DTII02B3061	DTII02B3062
	26	315	1316			1109	350	410	120				M20	22		DTII02B2081
	32	400														DTII02B3081	DTII02B3082
	40	500														DTII02B4081	DTII02B4082
	46	400	3520			1129	380	460	135	46	80	－	M24	26	4-M8 X1	DTII02B3101	DTII02B3102
	59	500														DTII02B4101	DTII02B4102
		630														DTII02B5101	DTII02B5102
	70		3524	1050		1189	440	530	155			－		32		DTII02B5121	DTII02B5122
800	6	250	1310	1250	950	1345	260	320	90	33	70	－	M16	14	2-M8 X1	DTII03B1051
	12	315	1312			1353	280	340	100					18		DTII03B2061
	20		1316			1359	350	410	120				M20	22		DTII03B2081
		400														DTII03B3081	DTII03B3082
	32	400	3520	1300		1429	380	460	135	46	80	－	M24	26	4-M8 X1	DTII03B3101	DTII03B3102
	40	500														DTII03B4101	DTII03B4102
	50	630														DTII03B5101	DTII03B5102
	47	400	3524	1300		1439	440	530	155		110	－		32		DTII03B3121	DTII03B3122
	56	500														DTII03B4121	DTII03B4122
	73	630														DTII03B5121	DTII03B5122
	90	800														DTII03B6121	DTII03B6122
	100	630	3528			1449	480	570	170	63	120	－	M30	37		DTII03B5141	DTII03B5142
	126	800														DTII03B6141	DTII03B6142
	170	630	3532	1400		1579	520	640	200	60	200	105		43		DTII03B5161	DTII03B5162
		800														DTII03B6161	DTII03B6162
B	Allowable resultant force(KN)	D	Bearing Type	A	L	L1	Q	P	H	h	M	N	ds	C	n-dy	Metal Face	Covering Rubber
																Drawing No.	Drawing No.
800	240	1000	3532	1400	950	1579	520	640	200	60	200	105	M30	43	4-M10 X1	DTII03B7161	DTII03B7162
	250	800	3536			1601	570	700	220	70	220	120		46		DTII03B6181	DTII03B6182
	330	1000														DTII03B7181	DTII03B7182
1000	6	250	1310	1450		1545	260	320	90	33	70	－	M16	14	2-M8 X1	DTII04B1051
	11	315	1312			1553	280	340	100					18		DTII04B2061
	18		1316			1559	350	410	120				M20	22		DTII04B2081
		400														DTII04B3081	DTII04B3082
	29		3520	1500	1150	1629	380	460	135	46	80	－	M24	26	4-M8 X1	DTII04B3101	DTII04B3102
	35	500														DTII04B4101	DTII04B4102
	43	630														DTII04B5101	DTII04B5102
	45	400	3524	1500		1639	440	530	155	46	110	－	M24	32		DTII04B3121	DTII04B3122
		500														DTII04B4121	DTII04B4122
	64	630														DTII04B5121	DTII04B5122
	79	800														DTII04B6121	DTII04B6122
	75	500	3528			1649	480	570	170	63	120	－	M30	37		DTII04B4141	DTII04B4142
	87	630														DTII04B5141	DTII04B5142
	110	800														DTII04B6141	DTII04B6142
	130	1000														DTII04B7141	DTII04B7142
	168	630	3532	1600		1579	520	640	200	60	200	105		43	4-M10 X1	DTII04B5161	DTII04B5162
		800														DTII04B6161	DTII04B6162
	200	1000														DTII04B7161	DTII04B7162
	220	800	3536			1801	570	700	220	70	220	120		46		DTII04B6181	DTII04B6182
	290	1000														DTII04B7181	DTII04B7182
	387		3540	1650		1906	640	780	240	75	240	140		60		DTII04B7201	DTII04B7202
	429		3544			1916	720	880	270	80	250		M36	65		DTII04B7221	DTII04B7222
1200	6	250	1310	1700	1400	1795	260	320	90	33	70	－	M16	14	2-M8 X1	DTII05B1051
	11	315	1312			1803	280	340	100					18		DTII05B2061
	17		1316			1809	350	410	120				M20	22		DTII05B2081
		400														DTII05B3081	DTII05B3082
	26		3520	1750		1879	380	460	135	46	80	－	M24	26	4-M8 X1		DTII05B3102
	30	500															DTII05B4102
	37	630															DTII05B5102

B	Allowable resultant force(KN)	D	Bearing Type	A	L	L1	Q	P	H	h	M	N	ds	C	n-dy	Metal Face	Covering Rubber
																Drawing No.	Drawing No.
1200	38	400	3524	1750	1400	1889	440	530	155	46	110	－	M24	32	4-M8 X1		DTII05B3122
	41	500															DTII05B4122
	53	630															DTII05B5122
	64	800															DTII05B6122
	70	500	3528			1899	480	570	170	63	120	－	M30	37			DTII05B4142
	90	630															DTII05B5142
	100	800															DTII05B6142
	134	1000															DTII05B7142
	150	630	3532	1850		2029	520	640	200	60	200	105		43	4-M10 X1		DTII05B5162
		800															DTII05B6162
		1000															DTII05B7162
	200	800	3536			2051	570	700	220	70	220	120		46			DTII05B6182
		1000															DTII05B7182
	230	800	3540	1900		2156	640	780	240	75	240	140		60			DTII05B6202
	351	1000															DTII05B7202
	391		3544			2166	720	880	270	80	250		M36	65			DTII05B7222
	473		3548			2186	750	900	290	90				75			DTII05B7242
1400	17	315	1316	1900	1600	2009	350	410	120	33	70	－	M20	22	2-M8 X1	DTII06B2081
		400														DTII06B3081	DTII06B3082
	25		3520	1950		2079	380	460	135	46	80	－	M24	26	4-M8 X1		DTII06B3102
		500															DTII06B4102
	40	400	3524			2089	440	530	155		110	－		32			DTII06B3122
		500															DTII06B4122
	50	630															DTII06B5122
		800															DTII06B6122
	66	500	3528	2050		2199	480	570	170	63	120	－	M30	37			DTII06B4142
	90	630															DTII06B5142
	94	800															DTII06B6142
	100	1000															DTII06B7142

B	Allowable resultant force(KN)	D	Bearing Type	A	L	L1	Q	P	H	h	M	N	ds	C	n-dy	Metal Face	Covering Rubber
																Drawing No.	Drawing No.
800	120	630	3532	2050	1600	2299	520	640	200	60	200	105	M30	43	4-M10 X1		DTII06B5162
	150	800															DTII06B6162
		1000															DTII06B7162
	186	800	3536			2251	570	700	220	70	220	120	M36	46			DTII06B6182
	236	1000															DTII06B7182
	214	800	3540	2100		2356	640	780	240	75	240	140		60			DTII06B6202
	331	1000															DTII06B7202
	361		3544			2366	720	880	270	80	250			65			DTII06B7222
	400		3548			2386	750	900	290	90				75			DTII06B7242
	427		3552			2396											DTII06B7262

Tail pulley(Bend Pulley) is used in belt conveyor pulley including the redirection, increase of transmission pulley Angle surround the guide pulley, tighten the cylinder and the tension device used to guide pulley, are widely used in power plant, ports, mining, metallurgy,building materials and other departments.

Tail pulley(Bend Pulley) by shaft, solar panels, barrel, surface covered by increasing with rubber belt Tail pulley(Bend Pulley) bearing, friction coefficient between inside pack self-aligning roller bearings, guarantee the stability of support and guarantee the flexible rotation.

Tail pulley(Bend Pulley)surface can be made in

1) steel smooth surface conveyor pulley used for low-power, small belt width and dry working condition.

2) rubber smooth surface conveyor pulley;

3) herringbone rubber surface conveyor pulley - coefficient of friction, slip resistance and good drainage;

4) diamond rubber surface lozenge conveyor pulley for bi-directional running conveyor.

Tail pulley(Bend Pulley) Feature

1) steady running;

2) reduce maintenance;

3) less movement longitudinally;

4) rotating smoothly.

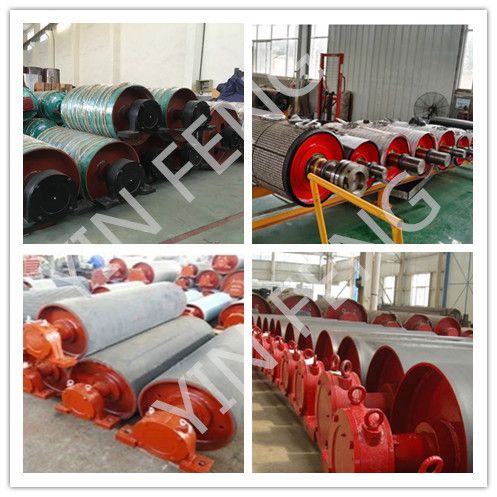

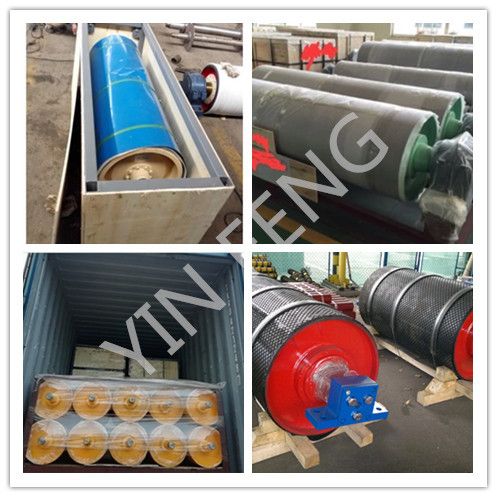

Tail pulley(Bend Pulley) Display

Tail Pulley(Bend Pulley)
