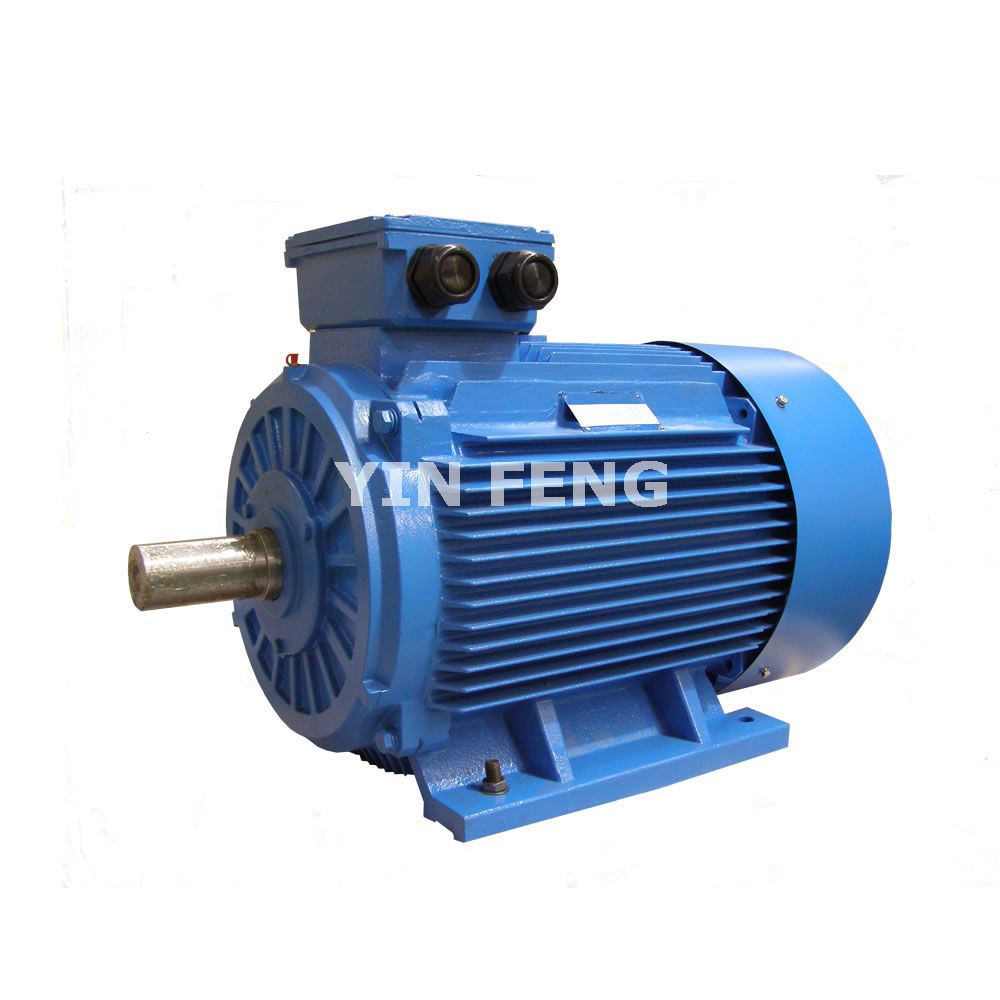

YE3 series ultra-high efficiency three-phase asynchronous motor

YE3 series ultra-high efficiency three-phase asynchronous motor

YE3 series ultra-high efficiency three-phase asynchronous motor has the advantages of beautiful appearance, high efficiency, low noise, high protection level, and is widely used in various general equipment such as fans, water pumps, machine tools, compressors, and also can be widely used in steel, chemical, petroleum, mining and other places with bad environment. Its energy efficiency level conforms to GB18613-2012<<the minimum energy efficiency limit and energy efficiency level of small and medium-sized three-phase asynchronous motor>>the secondary efficiency standard, At the same time, the installation size conforms to IEC60034 standard, and can also be designed according to different requirements of customers.

Inquire Now None

Product details

Type	Rated power	Rated speed	Rated current	Starting current	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Moment of inertia	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
2 pole-3000rpm synchronous speed
YE3-801-2	0.75	2855	1.7	7.0	80.7	0.82	2.5	2.3	2.3	0.0010	62	19
YE3-802-2	1.1	2855	2.4	7.3	82.7	0.83	3.7	2.2	2.3	0.0020	62	22
YE3-90S-2	1.5	2875	3.2	7.6	84.2	0.84	5	2.2	2.3	0.0020	67	30
YE3-90L-2	2.2	2875	4.6	7.6	85.9	0.85	7.3	2.2	2.3	0.0030	67	36
YE3-100L-2	3	2880	6.0	7.8	87.1	0.87	9.9	2.2	2.3	0.0060	74	45
YE3-112M-2	4	2900	7.8	8.3	88.1	0.88	13.3	2.2	2.3	0.0090	77	58
YE3-132S1-2	5.5	2900	10.6	8.3	89.2	0.88	18.1	2.0	2.3	0.0240	79	75
YE3-132S2-2	7.5	2900	14.4	7.9	90.1	0.89	24.7	2.0	2.3	0.0290	79	84
YE3-160M1-2	11	2940	20.6	8.1	91.2	0.89	35.7	2.0	2.3	0.0670	81	147
YE3-160M2-2	15	2940	27.9	8.1	91.9	0.89	48.7	2.0	2.3	0.0800	81	166
YE3-160L-2	18.5	2940	34.2	8.2	92.4	0.89	60.1	2.0	2.3	0.0970	81	183
YE3-180M-2	22	2955	40.5	8.2	92.7	0.89	71.1	2.0	2.3	0.1370	83	235
YE3-200L1-2	30	2965	54.9	7.6	93.3	0.89	96.6	2.0	2.3	0.2270	84	298
YE3-200L2-2	37	2965	67.4	7.6	93.7	0.89	119.2	2.0	2.3	0.2690	84	325
YE3-225M-2	45	2970	80.8	7.7	94.0	0.90	144.7	2.0	2.3	0.3600	86	379
YE3-250M-2	55	2975	98.5	7.7	94.3	0.90	176.6	2.0	2.3	0.7910	89	483
YE3-280S-2	75	2975	133.7	7.1	94.7	0.90	240.8	1.8	2.3	0.9600	91	629
YE3-280M-2	90	2975	159.9	7.1	95.0	0.90	288.9	1.8	2.3	1.1570	91	705
YE3-315S-2	110	2980	195.1	7.1	95.2	0.90	352.5	1.8	2.3	1.6620	92	1040
YE3-315M-2	132	2980	233.6	7.1	95.4	0.90	423	1.8	2.3	1.8740	92	1140
YE3-315L1-2	160	2980	279.4	7.2	95.6	0.91	512.8	1.8	2.3	2.1460	92	1293
YE3-315L2-2	185	2980	322.8	7.2	95.7	0.91	592.9	1.8	2.2	2.2810	92	1326
YE3-315L3-2	200	2980	348.6	7.2	95.8	0.91	640.9	1.8	2.2	2.4480	92	1358
YE3-355M1-2	220	2980	383.4	7.2	95.8	0.91	705	1.6	2.2	2.693	100	1694
YE3-355M2-2	250	2980	435.7	7.2	95.8	0.91	801.2	1.6	2.2	4.034	100	1802
YE3-355L1-2	280	2980	488	7.2	95.8	0.91	897.3	1.6	2.2	4.518	100	1920
YE3-355L2-2	315	2980	549	7.2	95.8	0.91	1009.5	1.6	2.2	4.645	100	2017
YE3-3551-2	355	2980	618.7	7.2	95.8	0.91	1137.6	1.6	2.2	5.242	104	2130
YE3-3552-2	375	2980	653.6	7.2	95.8	0.91	1201.7	1.6	2.2	5.536	104	2398

Type	Rated power	Rated speed	Rated current	Starting current	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Moment of inertia	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
4 pole- synchronous speed 1500r /min
YE3-802-4	0.75	1400	1.8	6.6	82.5	0.75	5.1	2.3	2.3	0.0030	56	24
YE3-90S-4	1.1	1425	2.6	6.8	84.1	0.76	7.4	2.3	2.3	0.0040	59	32
YE3-90L-4	1.5	1425	3.5	7	85.3	0.77	10.1	2.3	2.3	0.0050	59	39
YE3-100L1-4	2.2	1440	4.8	7.6	86.7	0.81	14.6	2.3	2.3	0.0120	64	49
YE3-100L2-4	3	1440	6.3	7.6	87.7	0.82	19.9	2.3	2.3	0.0160	64	56
YE3-112M-4	4	1450	8.4	7.8	88.6	0.82	26.3	2.2	2.3	0.0220	65	73
YE3-132S-4	5.5	1455	11.2	7.9	89.6	0.83	36.1	2.0	2.3	0.0600	71	88
YE3-132M-4	7.5	1455	15.0	7.5	90.4	0.84	49.2	2.0	2.3	0.0710	71	108
YE3-160M-4	11	1465	21.5	7.7	91.4	0.85	71.7	2.2	2.3	0.1370	73	150
YE3-160L-4	15	1465	28.8	7.8	92.1	0.86	97.8	2.2	2.3	0.1710	73	180
YE3-180M-4	18.5	1470	35.3	7.8	92.6	0.86	120.2	2.0	2.3	0.2380	76	221
YE3-180L-4	22	1475	41.8	7.8	93.0	0.86	142.4	2.0	2.3	0.2590	76	255
YE3-200L-4	30	1475	56.6	7.3	93.6	0.86	194.2	2.0	2.3	0.4590	76	325
YE3-225S-4	37	1480	69.6	7.4	93.9	0.86	238.8	2.0	2.3	0.6560	78	380
YE3-225M-4	45	1480	84.4	7.4	94.2	0.86	290.4	2.0	2.3	0.7580	78	419
YE3-250M-4	55	1480	102.7	7.4	94.6	0.86	354.9	2.2	2.3	1.0780	79	517
YE3-280S-4	75	1485	136.3	6.9	95.0	0.88	482.3	2.0	2.3	1.8000	80	688
YE3-280M-4	90	1485	163.2	6.9	95.2	0.88	578.8	2.0	2.3	2.1300	80	801
YE3-315S-4	110	1485	196.8	7.0	95.4	0.89	707.4	2.0	2.2	3.4150	88	1049
YE3-315M-4	132	1485	235.7	7.0	95.6	0.89	848.9	2.0	2.2	3.8070	88	1160
YE3-315L1-4	160	1485	285.1	7.1	95.8	0.89	1029.0	2.0	2.2	3.4230	88	1269
YE3-315L2-4	185	1485	329.3	7.1	95.9	0.89	1189.7	2.0	2.2	3.9580	88	1483
YE3-315L3-4	200	1485	351.7	7.1	96.0	0.90	1286.2	2.0	2.2	5.2620	88	1521
YE3-355M1-4	220	1490	386.9	7.1	96	0.9	1410.1	2.0	2.2	5.449	88	1650
YE3-355M2-4	250	1490	439.6	7.1	96	0.9	1602.3	2.0	2.2	6.192	95	1815
YE3-355L1-4	280	1490	492.4	7.1	96	0.9	1794.63	2.0	2.2	6.935	95	1870
YE3-355L2-4	315	1490	553.9	7.1	96	0.9	2018.9	2.0	2.2	7.273	95	1984
YE3-355L3-4	355	1490	638.5	7.1	96	0.9	2275.3	1.7	2.2	8.196	102	2291
YE3-355L4-4	375	1490	674.4	7.1	96	0.9	2403.5	1.7	2.2	8.658	102	2376

Type	Rated power	Rated speed	Rated current	Starting current	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Moment of inertia	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
6 pole-synchronous speed 1000r /min
YE3-90S-6	0.75	935	2.0	6.0	78.9	0.71	7.7	2.0	2.1	0.0040	57	32
YE3-90L-6	1.1	940	2.8	6.0	81	0.73	11.2	2.0	2.1	0.0060	57	40
YE3-100L-6	1.5	945	3.8	6.5	82.5	0.73	15.2	2.0	2.1	0.0160	61	47
YE3-112M-6	2.2	950	5.4	6.6	84.3	0.74	22.1	2.0	2.1	0.0390	65	63
YE3-132S-6	3	960	7.2	6.8	85.6	0.74	29.8	2.0	2.1	0.0350	69	75
YE3-132M1-6	4	960	9.5	6.8	86.8	0.74	39.8	2.0	2.1	0.0430	69	92
YE3-132M2-6	5.5	960	12.7	7.0	88.0	0.75	54.7	2.0	2.1	0.0560	69	108
YE3-160M-6	7.5	970	16.2	7.0	89.1	0.79	73.8	2.0	2.1	0.1400	73	144
YE3-160L-6	11	970	23.1	7.2	90.3	0.80	108.3	2.0	2.1	0.1920	73	179
YE3-180L-6	15	975	30.9	7.3	91.2	0.81	146.9	2.0	2.1	0.3190	73	227
YE3-200L1-6	18.5	975	37.8	7.3	91.7	0.81	181.2	2.0	2.1	0.4460	73	294
YE3-200L2-6	22	975	44.8	7.4	92.2	0.81	215.5	2.0	2.1	0.5570	73	316
YE3-225M-6	30	985	59.1	6.9	92.9	0.83	290.9	2.0	2.1	0.8320	74	357
YE3-250M-6	37	985	71.7	7.1	93.3	0.84	358.7	2.0	2.1	1.4470	76	496
YE3-280S-6	45	985	85.8	7.3	93.7	0.85	436.3	2.0	2.0	2.2520	78	613
YE3-280M-6	55	985	103.3	7.3	94.1	0.86	533.2	2.0	2.0	2.7260	78	693
YE3-315S-6	75	990	143.4	6.6	94.6	0.84	723.5	2.0	2.0	3.9840	83	1049
YE3-315M-6	90	990	169.5	6.7	94.9	0.85	868.2	2.0	2.0	4.5000	83	1215
YE3-315L1-6	110	990	206.8	6.7	95.1	0.85	1061.1	2.0	2.0	5.6070	83	1302
YE3-315L2-6	132	990	244.5	6.8	95.4	0.86	1273.3	2.0	2.0	6.9350	83	1455
YE3-355M1-6	160	990	295.7	6.8	95.6	0.86	1543.4	1.8	2	10.222	85	1709
YE3-355M2-6	185	990	341.5	6.8	95.7	0.86	1784.6	1.8	2	10.630	85	1830
YE3-355M3-6	200	990	364.6	6.8	95.8	0.87	1929.3	1.8	2	11.031	85	1945
YE3-355L1-6	220	990	401.1	6.8	95.8	0.87	2122.2	1.8	2	11.072	85	2018
YE3-355L2-6	250	990	455.7	6.8	95.8	0.87	2411.6	1.8	2	11.897	85	2092
YE3-3551-6	280	990	510.4	6.8	95.8	0.87	2701	1.8	2	13.692	91	2100
YE3-3552-6	315	990	580.9	6.8	95.8	0.87	3038.6	1.8	2	14.990	91	2299
